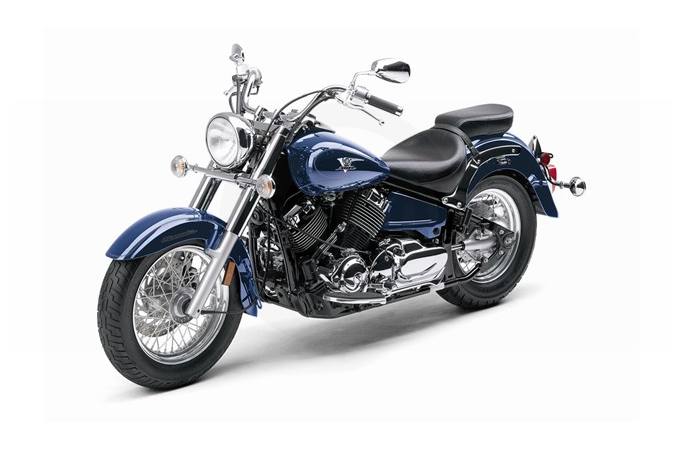

2010 Star Motorcycles V-Star Classic
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

For years, 40 cubic inches was a lot of motor. Guess what. It still is, especially when a sweet, overhead-cam 40-inch V-Twin powers a bike that doesn't weigh so much. The V-Star Classic is light, maneuverable and ready for you to make it your own.

    Engine Specifications
    • Engine Type: 40-cubic-inch (649cc) air-cooled 70° V-twin; SOHC, 2 valves/cylinder
    • Bore x Stroke: 81mm x 63mm
    • Compression Ratio: 9.0:1
    • Fuel Delivery: (2) 28mm Mikuni® CV carburetors
    • Ignition: TCI: Transistor Controlled Ignition
    • Transmission: 5-speed; multiplate wet clutch
    • Final Drive: Shaft
    Chassis Specifications
    • Suspension/Front: Telescopic fork; 5.5-in travel
    • Suspension/Rear: Single shock; adjustable preload, 3.9-in travel
    • Brakes/Front: Hydraulic disc, 298mm
    • Brakes/Rear: 200mm drum
    • Tires/Front: 130/90-16
    • Tires/Rear: 170/80-15
    • Wheels: Spoke
    Dimensions
    • Dimensions Length: 96.5"
    • Width: 36.6 in.
    • Height: 43.5 in
    • Seat Height: 27.9 in
    • Wheelbase: 64 in
    • Ground Clearance: 5.7 in
    • Fuel Capacity: 4.2 gal
    • Fuel Economy: 49 mpg
    • Wet Weigh: t544 lb / C: 548 lb
    • Warranty: Year (Limited Factory Warranty)
    Engine Features
    • Beautifully chromed and polished 40-cubic-inch (649cc) air-cooled, SOHC 70-degree V-twin cranks out torquey low and mid-range power with minimal engine rpm—maximum torque is reached at only 3000 rpm—for powerful, smooth cruising performance.
    • Forged, lightweight pistons. Greater durability and reduced vibration and reciprocating mass.
    • Efficient and quiet shaft drive. Requires almost no maintenance.
    • Ceramic-composite, cylinder-bore plating ensures superior heat dissipation. Offers better cooling and longer engine life.
    • Thick, cylnder cooling fins. Enhances the stylish look while increasing efficiency.
    • Dual, heated Mikuni® 28mm carburetors with a throttle position sensor (TPS) features a progressive pulley, electronic fuel pump and handy side-mounted air filter. Provides a consistent fuel flow, great throttle response and optimum power throughout the rev-range.
    • Wide-ratio five-speed transmission ensures extremely usable, cruiser-friendly power delivery to the asphalt.
    • Efficient and quiet shaft drive requires almost no maintenance.
    • Two-into-two chrome exhaust pipes create sleek styling and deliver maximum low- and mid-range engine output.
    Chassis/Suspension Features
    • Stout, large-diameter steel frame is designed to provide low seat height with ample legroom.
    • Extra long 64-inch wheelbase produces a long, low, retro profle with spacious ergonomics for added rider and passenger comfort and predictable handling.
    • Stylish heel/toe shifter adds versatility and enhances overall cruising comfort.
    • Comfortably placed full-size rider floorboards enhance ride by minimizing vibration and fatigue.
    • Telescopic 43mm front fork with chromed covers and 5.5 inches of travel ensures a smooth ride with stylish durability.
    • Classic, rigid-look, link-type rear suspension serves up 3.9 inches of rear wheel travel damped by a hidden preload-adjustable shock.
    • Single front disc and rear drum brakes deliver strong, confidence-inspiring stopping power.
    • Wide, retro-style handlebars evoke classic design, with roomy ergonomics for enhanced rider comfort.
    • Fat front tire on wire-spoked wheel combines retro styling with solid handling and traction.
    Additional Features
    • Industry-leading Star family fit and finish features rich, lustrous paint and extensive chrome accents that create a stunningly timeless machine.
    • Deeply valanced steel front and rear fenders are both durable and unmistakably classic.
    • Large, 4.2-gallon teardrop fuel tank looks good and goes a long way.
    • Beautiful, tank-mounted speedometer is designed with a large face for easy reading of tripmeter/odometer displays and turn signal, neutral, high beam and engine diagnostic indicator lights.
    • Chrome 60/55-watt halogen headlight adds a nice, stylish touch and maximizes nighttime visibility.
    • Maintenance-free 12V 10AH battery ensures reliable, no-fuss starting.
    • Under seat helmet holder increases convenience for the rider.
    • Locking compartment under side cover. Secure storage for small items.

    Specifications

    Engine
    Engine Type 70° V-twin; SOHC, 2 valves/cylinder
    Displacement 649 cc (40 cu. in.)
    Bore and Stroke 81 x 63 mm
    Cooling Air-cooled
    Compression Ratio 9.0:1
    Fuel System (2) 28mm Mikuni® CV carburetors
    Ignition TCI: Transistor Controlled Ignition
    Chassis
    Front Suspension Telescopic fork; 5.5-in travel
    Front Brakes Hydraulic disc, 298mm
    Front Tire 130/90-16
    Rear Suspension Single shock; adjustable preload, 3.9-in travel
    Rear Brakes 200 mm drum
    Rear Tire 170/80-15
    Dimensions
    Fuel Capacity 4.2 gal
    Wheelbase 64 in
    MPG 49 mpg
    Seat Height 27.9 in
    Transmission
    Transmission 5-speed; multiplate wet clutch
    Final Drive Shaft
    General
    Colors Deep Blue, Candy Red
    Warranty Warranty: 1 Year (Limited Factory Warranty); c: 1 Year (Limited Factory Warranty)

    Compare Models

    		 Print








    Year 2010
    Manufacturer Yamaha
    Model V-Star Classic
    Style Cruiser
    MSRP* $6,590.00
    Chassis
    Front Suspension Telescopic fork; 5.5-in travel
    Front Brakes Hydraulic disc, 298mm
    Front Tire 130/90-16
    Rear Suspension Single shock; adjustable preload, 3.9-in travel
    Rear Brakes 200 mm drum
    Rear Tire 170/80-15
    Dimensions
    Dry Weight
    Fuel Capacity 4.2 gal
    Wheelbase 64 in
    MPG 49 mpg
    Seat Height 27.9 in
    Trail
    Rake
    Engine
    Engine Type 70° V-twin; SOHC, 2 valves/cylinder
    Displacement 649 cc (40 cu. in.)
    Bore and Stroke 81 x 63 mm
    Cooling Air-cooled
    Compression Ratio 9.0:1
    Fuel System (2) 28mm Mikuni® CV carburetors
    Ignition TCI: Transistor Controlled Ignition
    General
    Speedometer
    Tachometer
    Odometer
    Colors Deep Blue, Candy Red
    Warranty Warranty: 1 Year (Limited Factory Warranty); c: 1 Year (Limited Factory Warranty)
    Transmission
    Transmission 5-speed; multiplate wet clutch
    Final Drive Shaft
